| Communications |
- H.323/SIP standards
- 128Kbps ~ 4Mbps
- RJ45 network LAN (10/100/1000)
- manual bandwidth settings
- content sharing capability from all sites
|
| Video Standards |
- H.264, H.263, H.263+, H.261
- H.239 dual video streams
|
| people video resolutions |
- HD1080p (1920 x 1080)
- HD720p (1280 x 720)
- 480p (848 x 480)
- 4SIF (704 x 480), 4CIF (704 x 576)
- WCIF (512 x 288)
- SIF (352 x 240), CIF (352 x 288)
- all resolutions at 30fps
|
| content video resolutions |
- supported resolutions :
- WSXGA (1440 x 900)
- HD (1360 x 768)
- SXGA (1280 x 1024)
- SXGA (1280 x 960)
- WXGA (1280 x 800)
- HD720p (1280 x 720)
- XGA (1024 x 768)
- SVGA (800 x 600)
- VGA (640 x 480)
- output resolutions: HD720p (1280 x 720) up to 30fps
|
| physical characteristics |
- package dimensions: 330 x 230 x 265 mm
- package weight: 4.32kg (9.52lbs)
- main system (codec): 260 x 158.7 x 33 mm

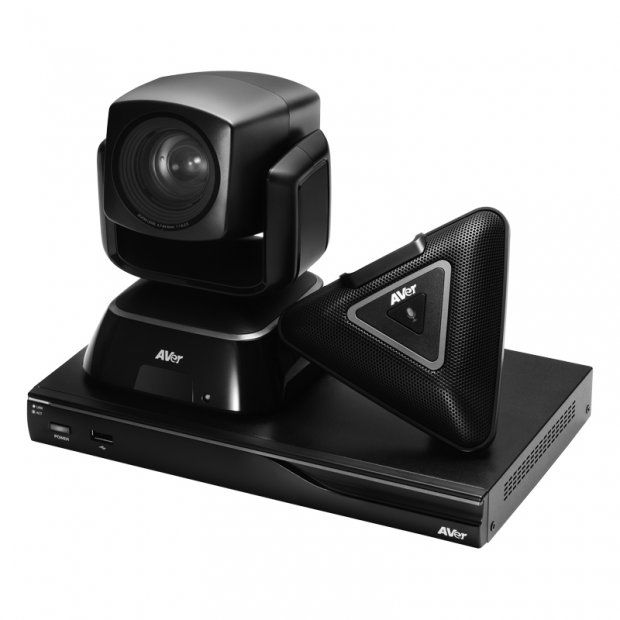

- EVC130p eCam PTZ camera: 122.3 x 122.3 x 159.5 mm
- EVC microphone array: 131.9 x 118.6 x 25.5 mm
|
| security |
- AES (Advanced Encryption Standard) function
- password protection for system settings
- password protection for remote system management
|
| value-added features |
- speed dialing via hot keys
- firmware update via Ethernet or USB flash drive
- screensaver and auto power off mode
- front and rear USB 2.0 ports
|
| environmental data |
- operation temperature: 0°C~40°C
- operation humidity: 20%~80%
- storage temperature: -20°C~60°C
- storage humidity: 20%~80%
|
| camera |
- support for single camera
- EVC130p eCam PTZ :
- pan/tilt/zoom camera
- 2-megapixel CMOS sensor
- 16X optical zoom
- ±100° pan; ±25° tilt
- 67° FOV(diagonal)
|
| video inputs |
|
| video outputs |
|
| audio standards |
- G.711, G.722, G.722.1, G.728, G.722.1C
|
| audio features |
- automatic gain control (AGC)
- advanced noise reduction
- acoustic echo cancellation (AEC)
|
| audio inputs |
- EVC microphone array
- line-in (3.5 mm)
|
| audio outputs |
- digital audio on HDMI cable
- line-out (3.5 mm)
|
| other supported standards |
- H.224 / H.281, H.225, H.245, H.323 Annex Q, H.460
|
| network |
- NAT / firewall traversal
- High Efficiency Lost Packet Recovery (HELPeR™)
- API support via Telnet
- Wake-on-LAN (WOL) support
- IPv4 and IPv6 support
|
| web management tool |
- remote management through the Web
- firmware update via Ethernet / Internet
- phonebook download / upload / edit
- restore system settngs
|
| power supply |
- AC 100V~240V, 50/60Hz
- consumption: EIAJ 12V, 4A
|
