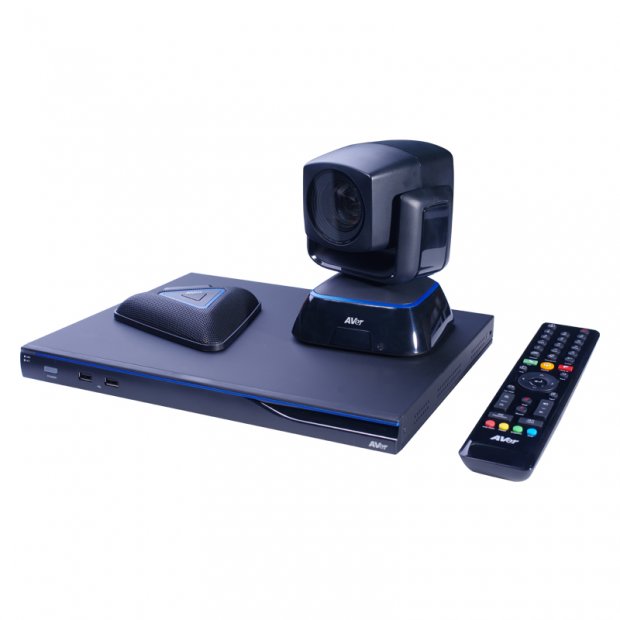

AVER EVC PRODUCT AVER EVC900

AVER EVC900 시리즈

10자간 까지 동시접속이 가능한 MCU 탑재 FULL-HD 1080P 고해상도 화질, 16배 광각 줌으로 더욱 강력해진 eCam PTZ 카메라

고성능 화상회의 시스템.

    20150624_113300

Communications
  • H.323/SIP standards
  • 64Kbps ~ 4Mbps
  • RJ45 network LAN (10/100/1000)
  • manual bandwidth settings
Multi-sites Features
  • H.323 Standard
  • MCU up to 10 sites (including itself)
  • Content sharing from any sites
Video Standards
  • H.264, H.263, H.263+
  • H.239 dual video streams
People video resolutions
  • HD1080p (1920 x 1080)
  • HD720p (1280 x 720)
  • 480p (848 x 480)
  • QVGA(320 x 240)
  • CIF (352 x 288)
  • all resolutions at 30fps
Content video resolutions
  • VGA Supported resolutions :
    • WSXGA+ (1680 x 1050)
    • WXGA (1280 x 768)
    • HD (1360 x 768)
    • SXGA (1280 x 1024)
    • XGA (1024 x 768)
    • SVGA (800 x 600)
    • VGA (640 x 480)
  • DVI (digital) Supported resolutions :
    • 1080p (1920 x 1080)
    • 720p (1280 x 720)
    • D1 (720 x 480)
    • SXGA (1280 x 1024)
    • XGA (1024 x 768)
    • SVGA (800 x 600)
    • VGA (640 x 480)
  • output resolutions: HD1080p (1920 x 1080) up to 30fps
Physical characteristics
  • package dimensions: 378 x 297 x 224 mm
  • package weight: 5.985kg (13.194lbs)
  • main system (codec): 320 x 262.7 x 37.2 mm
  • eCam PTZ camera: 122.3 x 122.3 x 159.5 mm
  • EVC microphone array: 131.9 x 118.6 x 25.5 mm
Security
  • AES (Advanced Encryption Standard) function(128-bit)
  • password protection for system settings
  • password protection for remote system management
Value-added features
      • Meeting recording

  – In meeting and offline recording

        – Save directly to USB flash drive
        – Supports screen re-layout during playback
        – Playback and file conversion via VCPlayer software (.mov format)
  • Dual monitor support
  • Speed dialing via hot keys (10 sets)
  • Camera presets (10 positions)
  • Firmware update via Ethernet or USB flash drive
  • Screensaver and auto power off mode
  • Two Front USB 2.0 ports
  • Network Time Protocol (NTP)
  • Built-in SIP registrar / external registrar
Environmental data
  • operation temperature: 0°C~40°C
  • operation humidity: 20%~80%
  • storage temperature: -20°C~60°C
  • storage humidity: 20%~80%
Camera
  • support for single camera
  • EVC eCam PTZ :
    • 2-megapixel CMOS sensor
    • 16X optical zoom
    • ±100° pan; ±25° tilt
    • 67° FOV(diagonal)
Video inputs
  • EVC eCam camera
  • VGA
  • DVI
Video outputs
  • HDMI
  • VGA
Audio standards
  • G.711, G.722, G.722.1, G.728, G.722.1C
Audio features
  • automatic gain control (AGC)
  • advanced noise reduction
  • acoustic echo cancellation (AEC)
Audio inputs
  • EVC microphone array
  • line-in (3.5 mm)
Audio outputs
  • digital audio on HDMI cable
  • line-out (3.5 mm)
Other supported standards
  • H.224, H.225, H.245, H.281, H.323 Annex Q, H.460
User interface
      • Multiple layout styles
      • User-friendly OSD (21 supported languages:

      English, Traditional Chinese, Simplified Chinese,

            Czech, Danish, Dutch, Finnish, French, German,
            Hungarian, Italian, Japanese, Korean,Norwegian,
            Polish, Portuguese-Brazil, Romanian, Russian,
            Spanish, Swedish, Thai
  • Display / edit site name
Network
  • 10/100/1000Mbps
  • NAT / firewall traversal(H.460)
  • High Efficiency Lost Packet Recovery (HELPeR™)
  • API support via Telnet
  • Wake-on-LAN (WOL) support
  • IPv4 and IPv6 support
  • Quality of service(Qos)
Web management tool
  • Remote management through the Web
  • Live monitoring via the Web
  • Firmware update via Ethernet / Internet
  • Phonebook download / upload / edit
  • Restore system settngs
  • Network test
Power supply
  • AC 100V~240V, 50/60Hz
  • Consumption: EIAJ 12V, 4A
Package contents
  • Main system unit (codec)
  • EVC eCam PTZ camera
  • EVC microphone array
  • IR remote control with batteries
  • Power supply
  • Cables
  • Warranty card
  • Quick guide
Optional accessories
  • Additional microphone
  • Camera mount
  • Replacement eCam PTZ camera
